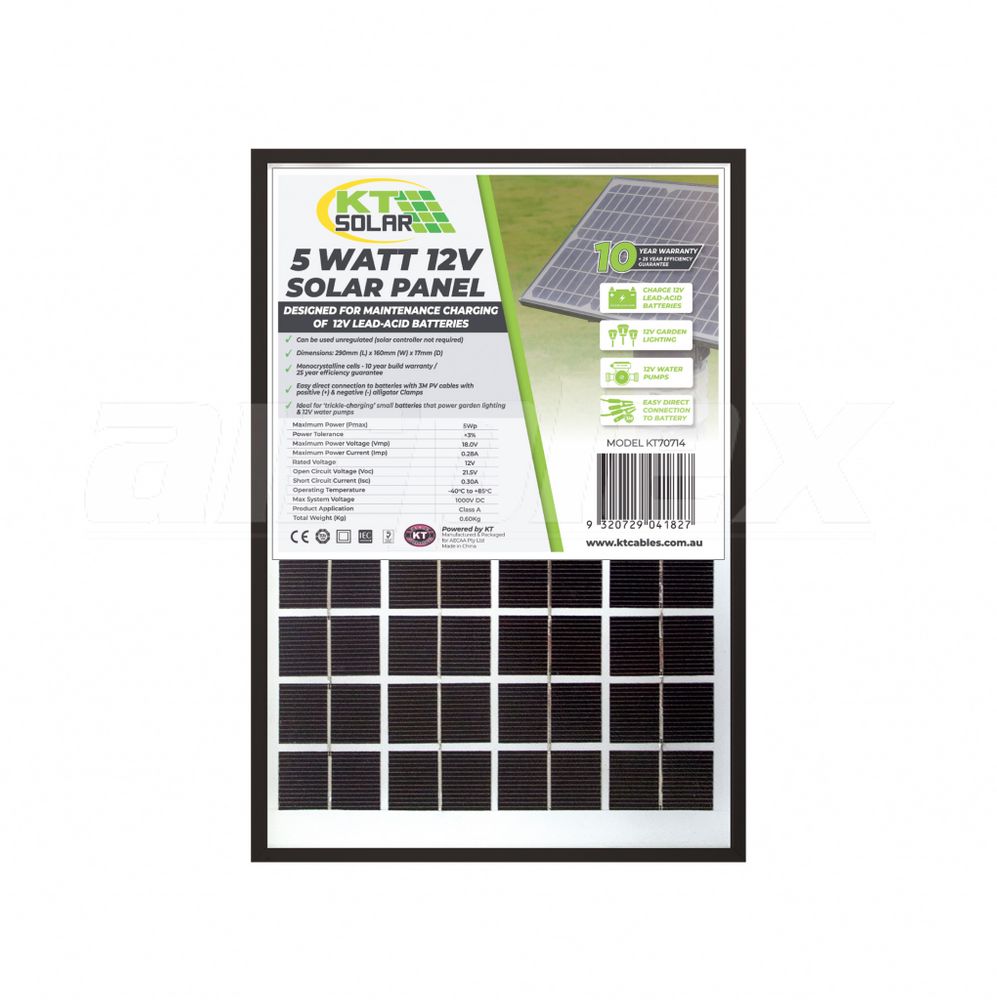

SOLAR PANEL - 5 Watt, 12V Single Cell Mono-crystalline Solar Panel
Excludes freight and installation
Description
The KT 5 Watt, 12V Single Cell Mono-crystalline Solar Panel (Model No. KT70714) is ideal for a variety of home applications including trickle charging small batteries, charging small batteries that power garden lighting and surveillance camera’s.
Designed for maintenance charging (trickle-charging) of 12V lead acid batteries that power garden lighting & 12V water pumps
Can be used unregulated (without solar controller)
Direct connection to batteries with 3M PV cables with positive (+) & negative (-) alligator clamps
Specifications:
Power Tolerance +3%
Maximum Power (Pmax) 5Wp
Maximum Power Voltage (Vmp) 18.0V
Maximum Power Current (Imp) 0.28A
Rated Voltage 12V
Open Circuit Voltage (Voc) 21.5V
Short Circuit Current (Isc) 0.30A
Operating Temperature -40°C to +85°C
Product Application Class A
Max System Voltage 1000V DC
Dimensions & Weight:
Dimensions (Height): 290mm
Dimensions (Length): 160mm
Dimensions (Depth): 17mm
