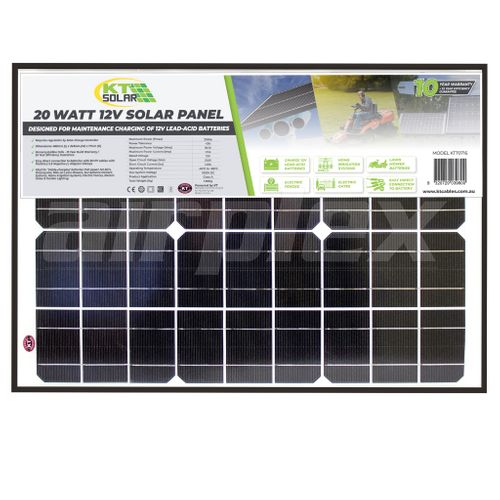

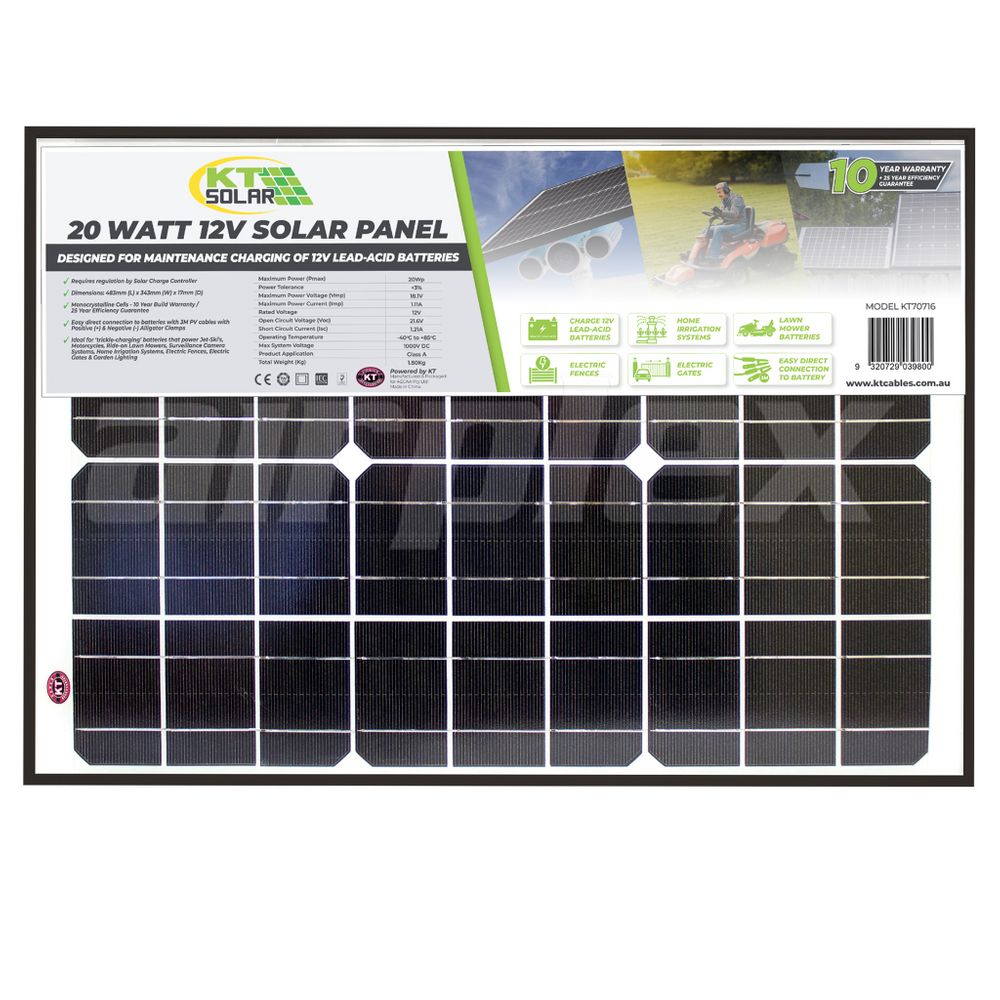

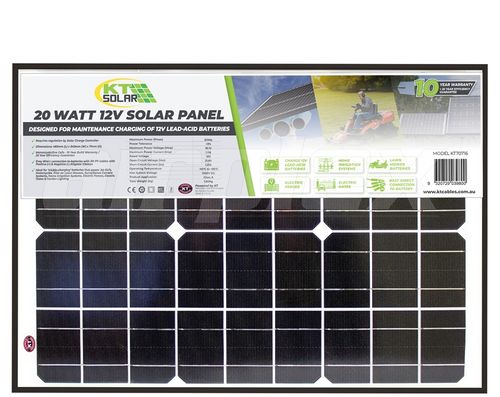

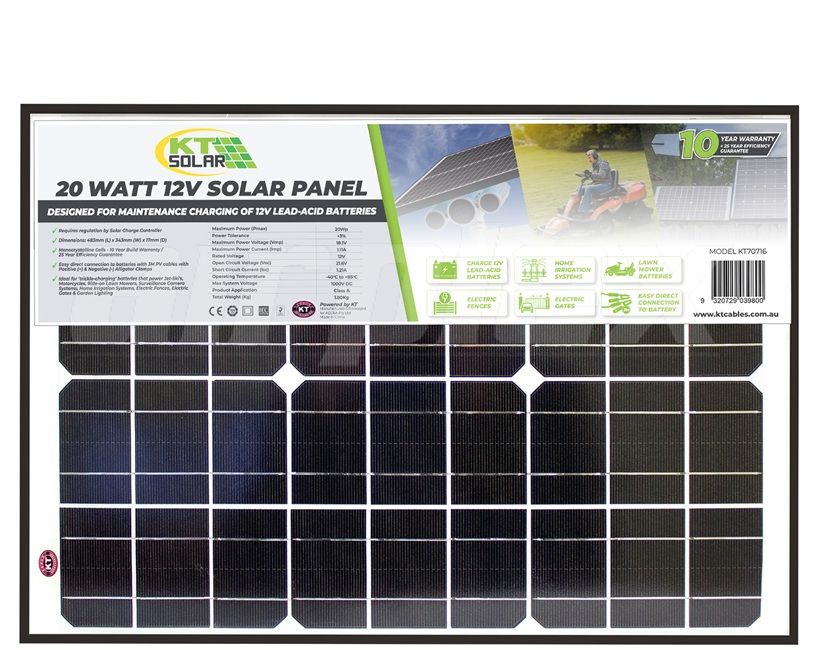

SOLAR PANEL - 20 Watt, 12V Single Cell Mono-crystalline Solar Panel
Excludes freight and installation
Description
Designed for maintenance charging (trickle-charging) 12V lead-acid batteries that power jet-ski’s, motorcycles, ride-on lawn mowers, surveillance camera systems, home irrigation systems, electric fences, electric gates and garden lighting.
Requires regulations from solar charge controller.
Suited to KT Solar Controller Model No. KT70755 8 Amp PWM Solar Charge Controller.
Easy direct connection to batteries with 3M PV cables with positive ( + ) & negative ( - ) alligator clamps.
Specifications:
Power Tolerance +3%
Maximum Power (Pmax) 20Wp
Maximum Power Voltage (Vmp) 18.1V
Maximum Power Current (Imp) 1.11A
Rated Voltage 12V
Open Circuit Voltage (Voc) 21.6V
Short Circuit Current (Isc) 1.21A
Operating Temperature -40°C to +85°C
Product Application Class A
Max System Voltage 1000V DC
Dimensions & Weight:
Dimensions (Height): 483mm
Dimensions (Length): 343mm
Dimensions (Depth): 17mm
Panel Weight: 1.80Kg
