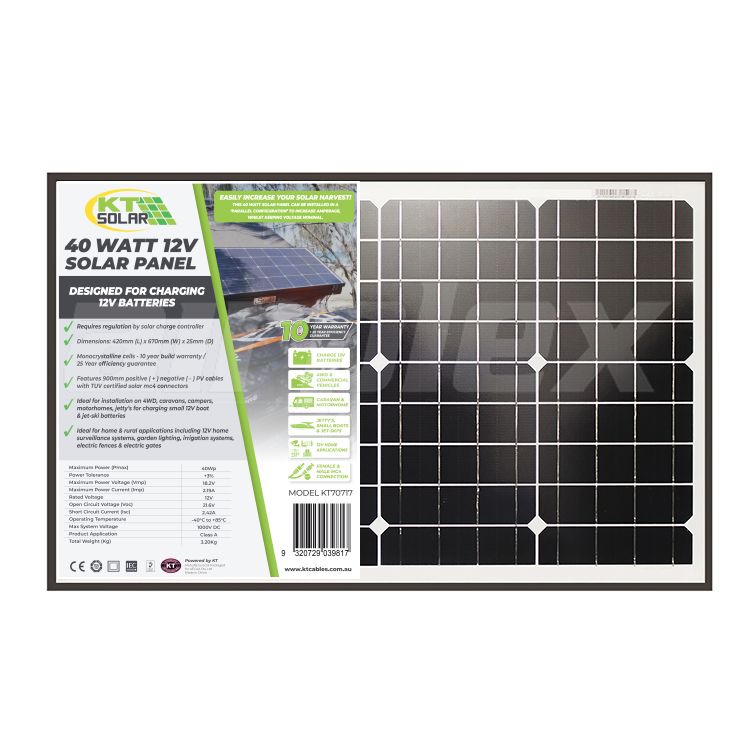

SOLAR PANEL - 40 Watt, 12V Single Cell Mono-crystalline Solar Panel
Excludes freight and installation
Description
Designed for installation on 4WD, caravans, campers, motorhomes & jetty’s for charging small 12V boat & jet-ski batteries.
Ideal for home & rural applications including 12V home surveillance systems, garden lighting, irrigation systems, electric fences & electric gates.
Requires regulations from solar charge controller.
Suited to KT Solar Controller Model No. KT70755 – 8 Amp PWM Solar Charge Controller.
Features 900mm PV cables terminated to male & female TUV certified solar connectors.
Features:
Designed for maintenance charging (trickle-charging) 12V batteries
Ideal for installation on 4WD’s, caravans, motorhomes, jetty’s for charging small 12V boat & jet-ski batteries
Ideal for 12V home surveillance systems, garden lighting, irrigation, electric fences/gates
Requires regulation by solar charge controllers
Connect to batteries with 900mm PV cables with positive (+) & negative (-) TUV certified connectors
Specifications:
Power Tolerance +3%
Maximum Power (Pmax) 40Wp
Maximum Power Voltage (Vmp) 18.2V
Maximum Power Current (Imp) 2.19A
Rated Voltage 12V
Open Circuit Voltage (Voc) 21.6V
Short Circuit Current (Isc) 2.42A
Operating Temperature -40°C to +85°C
Product Application Class A
Max System Voltage 1000V DC
Dimensions & Weight:
Dimensions (Height): 420mm
Dimensions (Length): 670mm
Dimensions (Depth): 25mm
Panel Weight: 3.20Kg
