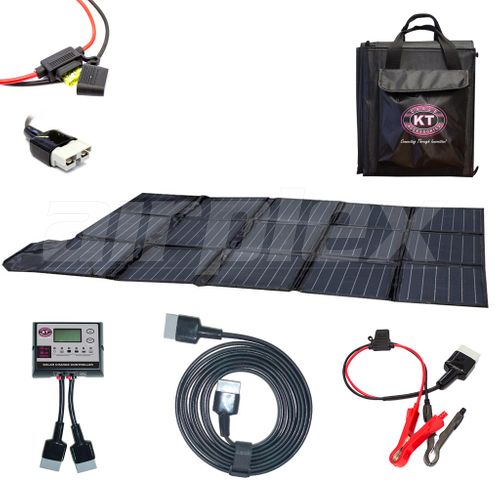

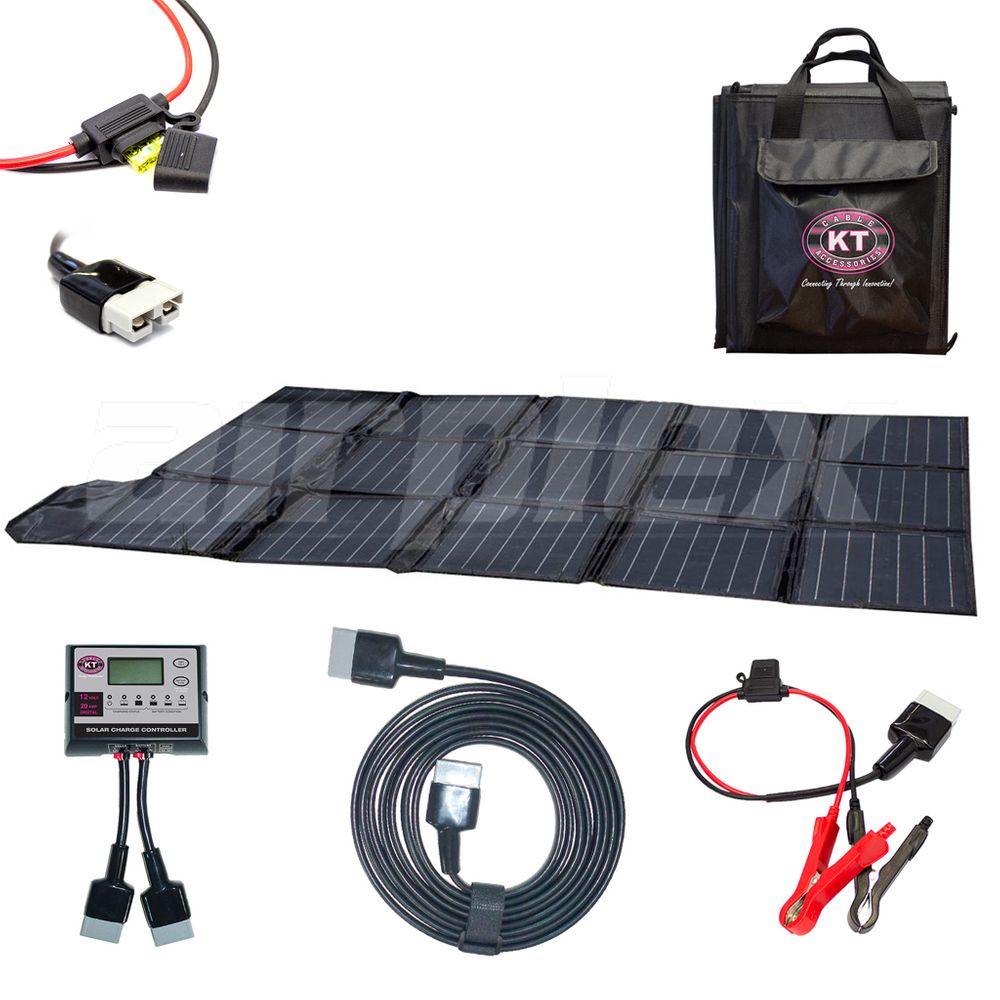

SOLAR PANEL - 300 Watt, 12V Portable Solar Folding Blanket
Excludes freight and installation
Description
The 300W, 12V Portable Solar Blanket is an industry first innovation by KT Solar, putting out a powerful 300 Watts. Ideal for off-road adventures, camping & caravanning trips, the 300W solar blanket comes complete with power leads and a 20Amp PWM solar charge controller which is capable of charging gel, wet, AGM, calcium and lithium batteries. Folding down to a convenient briefcase style carry bag, the 300W solar blanket is the ultimate space-saving solar solution to keep your 12V batteries full of charge.
Features:
One-Piece Easy-Fold Weather-Proof 300 Watt Solar Blanket
Small, compact design for easy transportation and storage
50A Heavy Duty Connector wired to Solar Blanket for easy power connection
20A, 12V PWM Solar Charge Controller (IP65)
5M Power Lead with easy 50A connections to power
55cm Power Lead with Positive/Negative battery clamps & 20A in-line fuse
Features securing tab to fix solar blanket to vehicle
Blanket features loops along the edge to allow mounting in various positions
Five accreditation certificates
Specifications:
Power Tolerance +3%
Maximum Power (Pmax) 300Wp
Maximum Power Voltage (Vmp) 18.8V
Maximum Power Current (Imp) 15.95A
Rated Voltage 12V
Open Circuit Voltage (Voc) 22.1V
Short Circuit Current (Isc) 16.42A
Operating Temperature -40°C to +85°C
Product Application Class A
Max System Voltage 600V D
Dimensions & Weight:
Dimensions (Length Unfolded): 1526mm
Dimensions (Height Unfolded): 1140mm
Dimensions (Depth Unfolded): 5mm
Dimensions (Length folded): 390mm
Dimensions (Height folded): 380mm
Dimensions (Depth folded): 140mm
Panel Weight: 8.85Kg
