TOWBAR - ADJUSTABLE HEIGHT TONGUE

Description

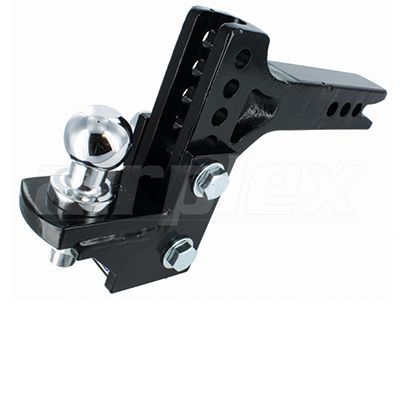

Adjustable Ball Mount

Superior range of adjustment up to 200mm
Suitable for most vehicles with 50mm square hitch receiver.
Cast shank, which can be used in inverted position

-Rating 3500kg

-Drop/Rise
Maximum drop 90mm from pin centre
Maximum rise 114mm from pin centre

-Shank Receiver Size 50mm square shank

- Tongue width 65mm

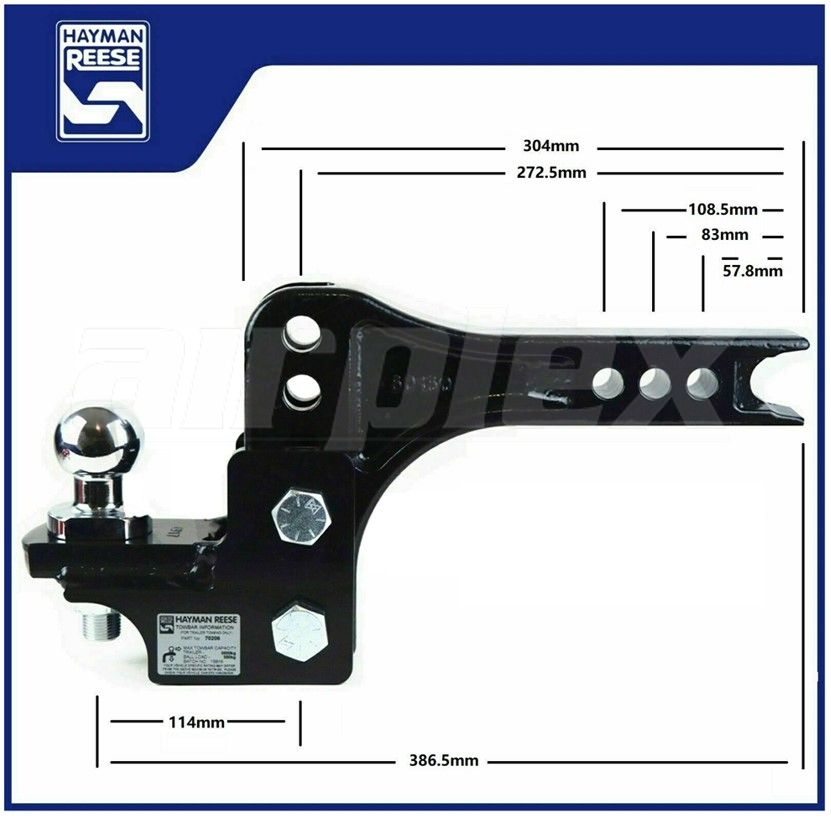

-Shank Length
Ball to Pin Length 278mm 303.5mm 328.7mm
Pin to Rear Length 108.5mm 83mm 57.8mm

-Towball Shank Diameter 22mm (7/8")
-Supplied with a 50mm Ball
